Process Analytical Tools (PAT)

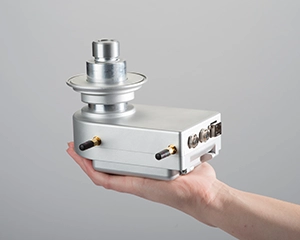

The user-friendly MicroNIR PAT-W was engineered to handle today's challenging GMP-regulated environments yet requires minimal system maintenance. There are no expensive fiber optic cables or moving components, enabling superior instrument stability and performance in challenging process environments. Its stainless steel/brushed aluminum case is water and dust resistant according to IP65/67 standards.

The key features of the MicroNIR PAT-W spectrometer are as follows

• Non-destructive, non-invasive, and real-time near-infrared analysis
• User-selectable Ethernet or Wi-Fi for data communication and system control
• User-replaceable, rechargeable Li-ion battery with over eight hours of uninterrupted run time
• Integrated PC enables fast and secure store and forward of spectral data
• Incorporated multi-axis orientational triggering
• Trigger options for a variety of applications: push button, OPC and external photosensor
• Real-time moving block standard deviation (MBSD) analysis for endpoint determination in granulation, blending, drying, and coating processes
• Washable, IP65/67-rated enclosure

Applications of the new MicroNIR PAT-W spectrometer include:

Industrial processing

• Polymers
• Reaction monitoring
• Petrochemicals

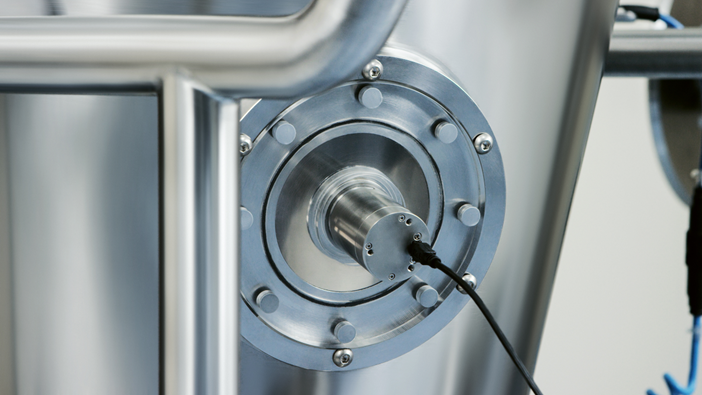

The PAT-Ux is the hazardous location version of the popular VIAVI PAT-U miniature process spectrometer. Safe in the presence of flammable gases, vapors, fibers, or dust, the PAT-Ux enables moving a process directly to production in a hazardous location using chemometric models and processes developed in the ordinary location of a laboratory. The PAT-Ux attaches readily to fixed processing equipment of all types and sizes, with the performance and stability to support truly efficient – and scalable – manufacturing.

Benefits

• Non-invasive, real-time NIR analysis for hazardous manufacturing locations
• Safe in the presence of flammable gases, vapors, fibers, or dust
• ATEX, NEC, and IECEx certified
• Interoperable with all MicroNIR instruments
• Maintenance-free with no moving parts
• Robust, reliable, repeatable
• Washable, IP65 & IP67 rated instrument head
• Easy Ethernet and power connections

Applications

Industrial Processing

• Explosives manufacturing
• Polymers & petrochemicals

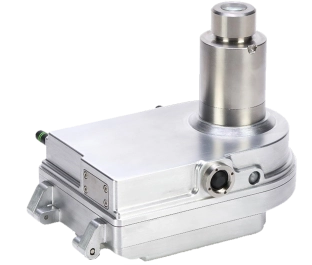

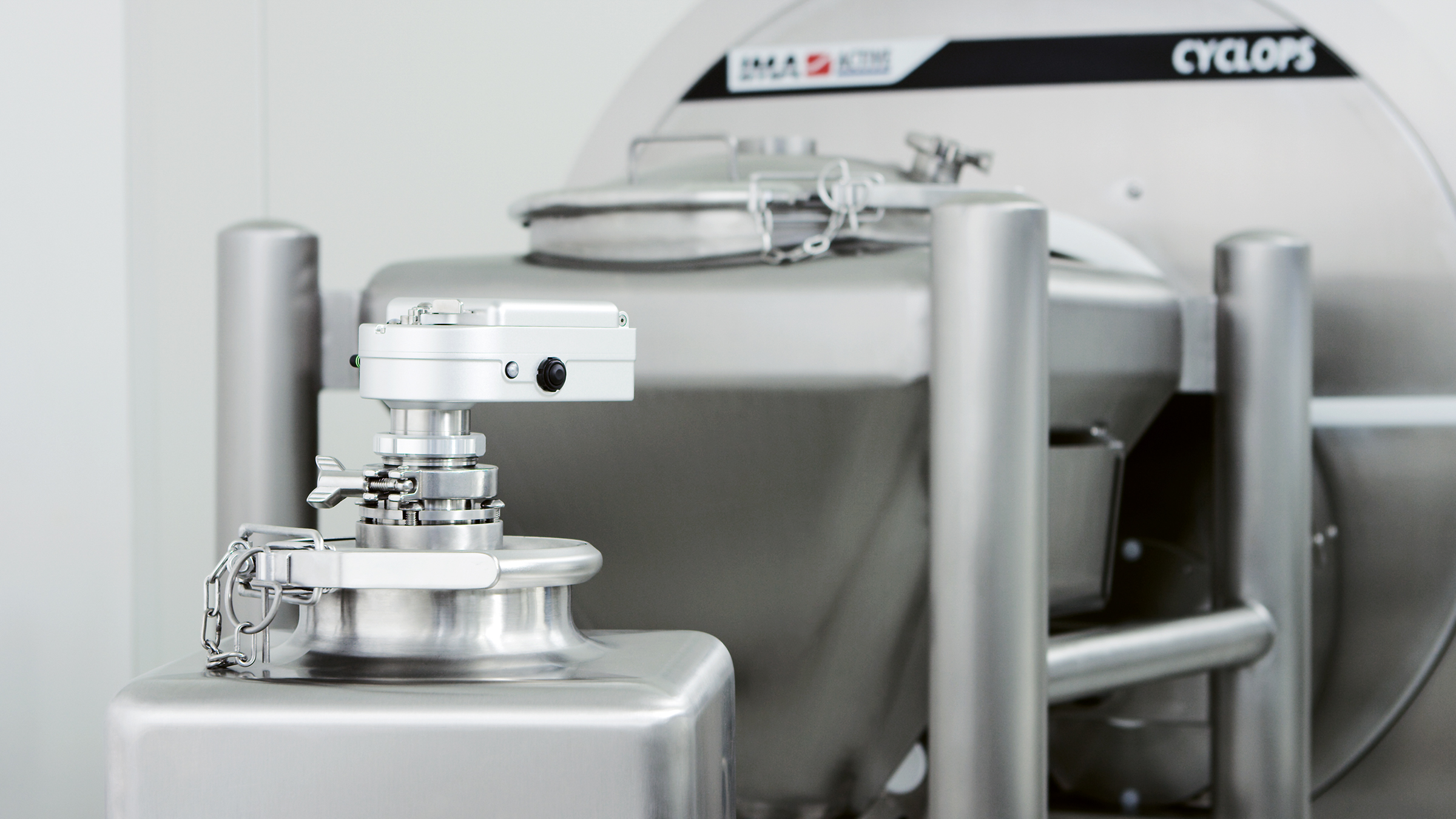

The PAT-Wx is the hazardous location version of the popular VIAVI PAT-W wireless miniature process spectrometer. Its compact, lightweight design and automatic triggering function make it ideal for use on dynamic process equipment like tumble blenders. Since it is wireless and safe in the presence of flammable gases, vapors, or dust, the PAT-Wx is also suited to diverse process monitoring applications in hazardous environments. As a member of the MicroNIR product family, it enables moving a process directly to production in a hazardous location using chemometric models and processes developed elsewhere. The PAT-Wx integrates readily with process equipment of all types and sizes, with the performance and stability to support truly efficient – and scalable – manufacturing.

Key Features

• Rechargeable Li-ion battery with over 8 hours of continuous run time
• Wi-Fi connection to host via included router
• Integrated motion-sensitive triggering
• Compatible with all MicroNIR chemometric models
• Washable, IP67- and IP65-rated enclosure
• Integrated PC enables fast and secure store and forward of collected spectral data

Highlights

• HazLoc reinforced housing
• Certified ATEX, NEC, and IECEx compliant
• Secure battery cover (tool only)
• Recessed multifunction button
• HazLoc compatible battery
• Concealed electrical connections

Benefits

• Non-invasive, real-time NIR analysis for hazardous manufacturing locations
• Safe in the presence of flammable gases, vapors, fibers, or dust

Applications

Industrial Processing

• Explosives manufacturing
• Polymers & petrochemicals

The MicroNIR PAT-L immersion spectrometer is based on the MicroNIR PAT-U process spectrometer, with design adaptations that include: y Full integration into a fixed gap immersion probe y High-efficiency light pipe design y Inert gas backfill eliminates water vapor interference and condensation y Hardwired USB cable for reliability y Optional removable cooling jacket The PAT-L is a fully integrated spectrometer-probe. The spectrometer section is rated IP65/IP67 and the immersion probe section is rated at up to 250 bar. Optical specifications are identical to the MicroNIR PAT-U and may be found on the PAT-U Data Sheet. The cooling jacket, with hose barb connections, allows coolant to circulate and maintain the spectrometer within its operating temperature range while the probe is in contact with hot fluids or in high ambient temperatures. Maximum working temperatures depend on the probe length and material and the coolant used. The MicroNIR internal temperature operating range is 0 to 50ºC. The PAT-L immersion probe section is based on the Hellma Excalibur HD FPT 26, a well-proven, heavy-duty industrial probe.

Features

• All-in-one optical design for ease of installation and cleaning
• Continuous liquid process monitoring in vessels, tanks and pipelines
• Rapid acquisition time for real-time reaction monitoring and high flow liquid streams
• Wide range of transmission path lengths for organic solvents and aqueous solutions
• Full integration of light source and light pipe eliminates fiber optics
• Broadly configurable to meet the needs of most processes
• Optional cooling jacket for high temperature environments
• USB-powered via hardwired cable
• Includes MicroNIR Pro software, a complete data acquisition and chemometric modeling package

Applications

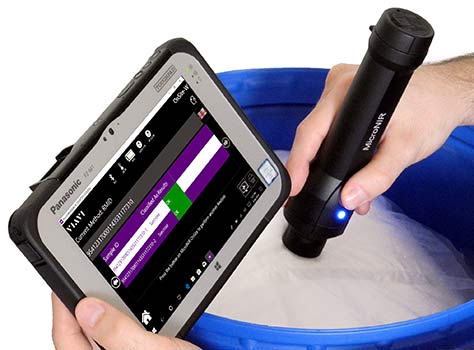

The MicroNIR OnSite-W is the latest addition to the VIAVI Solutions innovative, ultra-compact spectrometer product line. The MicroNIR OnSite-W is the smallest fully-integrated NIR spectrometer on the market and is enabled by proven VIAVI linear variable filter (LVF) technology. With no moving parts and IP65/IP67 dust/water ingress rating, it is designed for a wide range of material characterization applications in food, agriculture, pharmaceutical, and security markets.

Features and Benefits

• Rapid, real-time, non-destructive near-infrared material analysis
• Wireless, compact, rugged, and ergonomic design for one-hand operation
• Multifunction button for one-click data acquisition
• Internal, rechargeable battery with run time greater than 10 hours
• IP65 and IP67 rated for use in wet and dusty environments
• Bluetooth or USB connectivity to tablet or PC
• Compatible with original MicroNIR OnSite accessories
• Powerful MicroNIR Pro model-building and prediction software
• Intuitive, easy-to-use software interface

Applications

• Pharmaceutical raw materials
• Polymers and chemicals
• Narcotics and explosives
• Grain and forage
• Tobacco and agricultural products
• Meat and dairy products

Software

The MicroNIR OnSite-W system includes the MicroNIR Pro software suite with features for data acquisition, calibration and method development, user management, and real-time prediction. Using MicroNIR Pro software, a developer can process data and build complete chemometric models using regression and classification algorithms including PLS, MBSD, SMV, and PCA analyses. Batch mode predictions on stored data are also supported.

MicroNIR Pro software also includes instrument performance qualification per EP 2.2.40 and USP 1119 test criteria and tools enabling Title 21 CFR Part 11 compliance. An enhanced OPC interface is optionally available for integration with process control systems. The OnSite-W system also includes a standalone tablet application with simplified user interface for data acquisition and real-time prediction in the field.

Please see recommended hardware/software listed in specifications.

Standard Accessories

1. Two applicators with sapphire windows, AR-coated on one side for maximum light throughput
   • Small applicator for flexible operation and for reaching samples in confined spaces easily
   • Large applicator for soft material measurement such as fiber, clothes and vegetation
2. Protected white reference with sapphire window
   • Matching grooves on the applicators and reference for easy alignment in the field
   • Protected window and aluminum enclosure for use in the field and for easy cleaning
3. Rugged carrying case including space for PC and tablet
4. USB cable for charging and data connection to PC

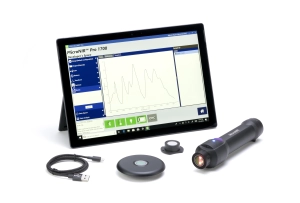

The VIAVI MicroNIR 1700EC is a lightweight and cost-effective near infrared (NIR) spectrometer that includes the VIAVI high-precision optical coating technology with innovation in optical system design and miniaturization.

By combining VIAVI linear variable filter (LVF) technology as the dispersing element, the spectrometer has a light source, collection optics, electronics, and LVF in a housing that measures less than 50 mm in diameter, less than 45 mm in height, and weighs only 64 g. The spectrometer is USB powered and can be used in diffuse reflection, transmission, or transflection modes.

A MicroNIR Pro package includes a number of accessories that either enhance ease-of-use or enable measuring with varied configurations that perfectly suit specific applications.

Standard Accessories

• Measurement collar with sapphire window
• Spectralon reference target
• Power and data USB-C cable
• Flash drive with software, manuals and support documentation

Options

Transmission fixture for liquid sample measurement

Key Benefits

• Covers the first and second overtone spectral region: 950 – 1650 nm
• Powerful calibration model development tool
• Enhanced electronic and mechanical design for better system stability and thermal control
• Real-time predictions and method management

Applications

• Food, feed and agriculture
• Pharmaceutical
• Industrial processing
