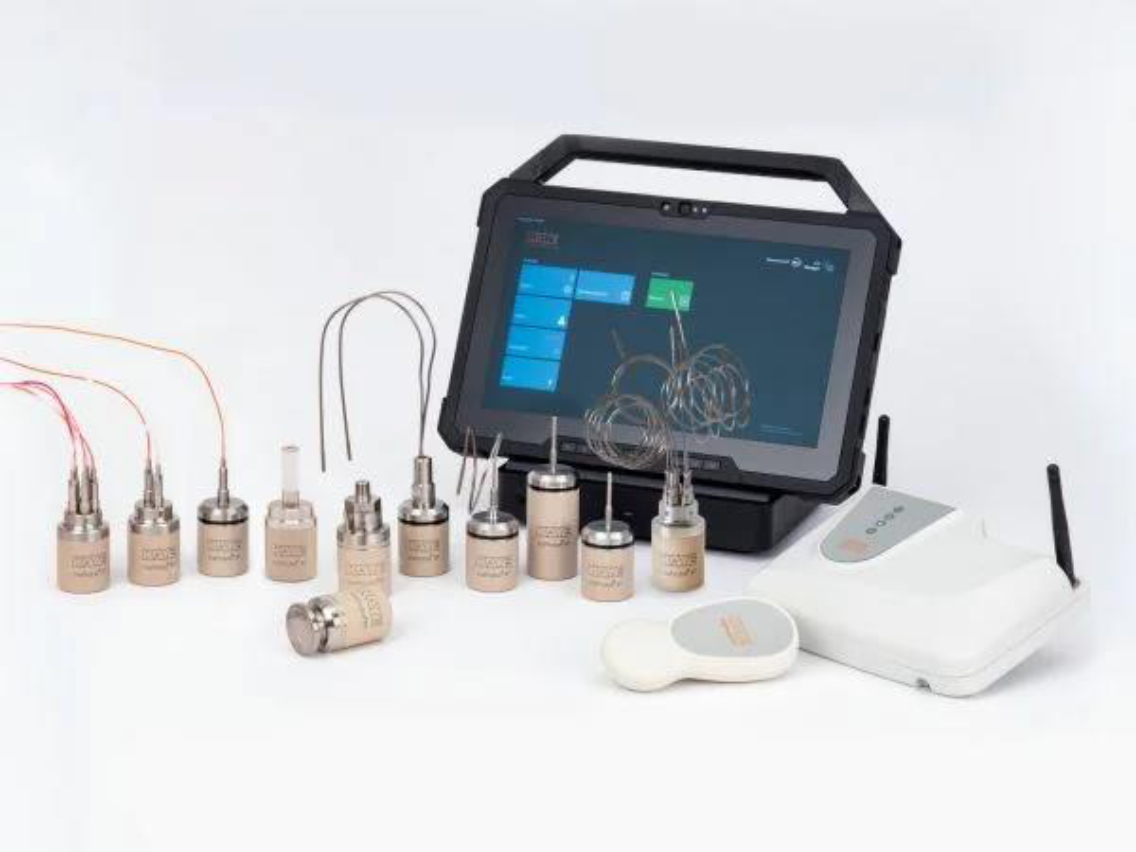

A wide range of wireless Real Time Dataloggers for accurate, in-situ measurements of critical process temperature, pressure, and humidity measurements. (-80C to 140C).

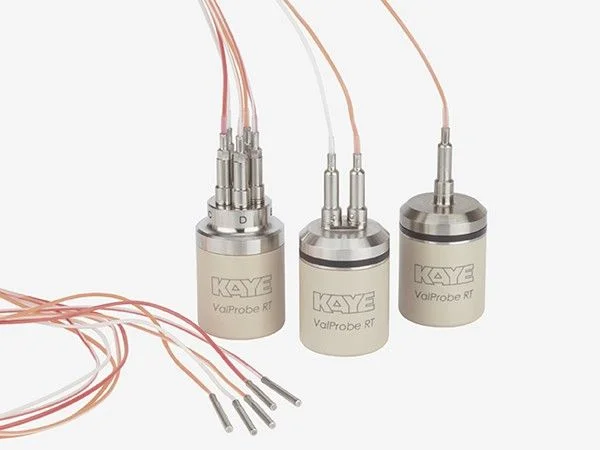

Sensor Type | Single, Dual and 5-Channel | ||
---|---|---|---|
Sensor Length | 40" inches 1000 mm |
||
Tip Diameter | 0.095"; 2.4mm | ||
Measurement Range | -85°C to 140°C | ||
Accuracy | -85°C to 140°C, ±0.1°C |

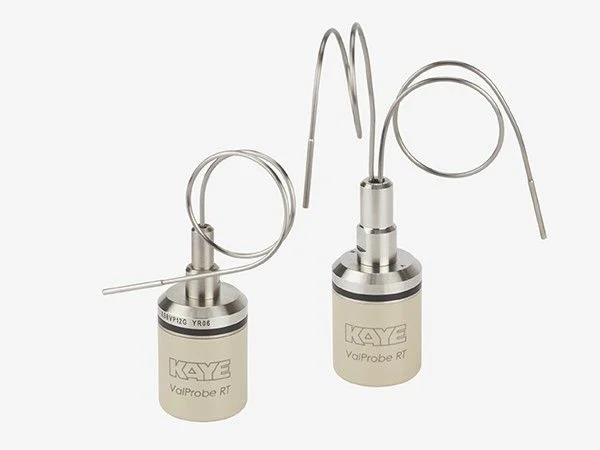

Sensor Type | Single and Dual Sensor | ||
---|---|---|---|
Sensor Length | 12, 24, 36" inches 305, 610, 915 mm |
||
Tip Diameter | 0.095"; 2.4mm | ||
Measurement Range | -85°C to 400°C | ||
Accuracy | -85°C to 140°C, ±0.1°C 140°C to 400°C ±0.25°C |

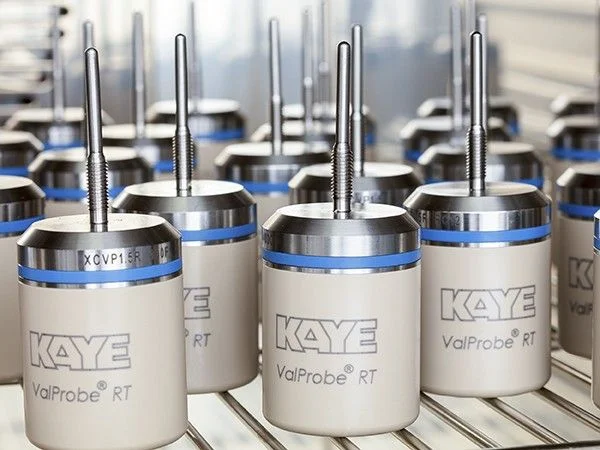

Sensor Type | Single Sensor | ||
---|---|---|---|
Sensor Length | 1.5, 3, 6, 9" inches 38, 76, 152, 229 mm |
||
Tip Diameter | 0.118"; 3mm | ||
Measurement Range | -85°C to 140°C | ||
Accuracy | -85°C to 140°C, ±0.1°C |

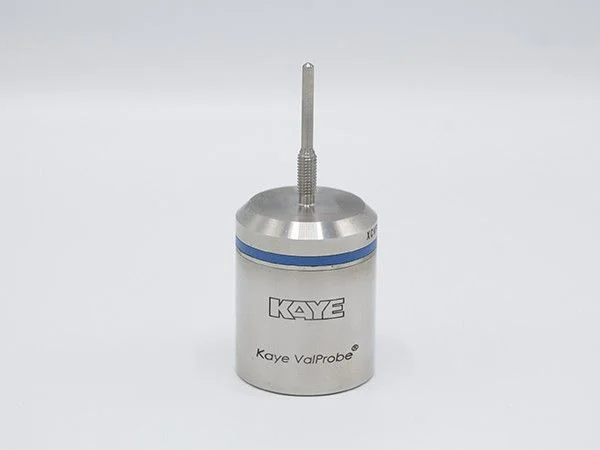

Sensor Type | Ultra Flat Surface Sensor | ||
---|---|---|---|
Sensor Length | - | ||
Tip Diameter | 32mm diameter | ||
Measurement Range | -85°C to 140°C | ||
Accuracy | -85°C to 140°C, ±0.1°C |

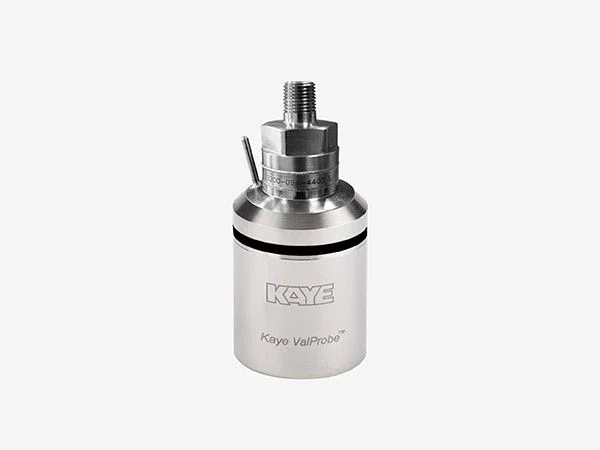

Sensor Type | Single P/T Sensor | ||
---|---|---|---|
Sensor Length | - | ||
Tip Diameter | 1/4 NPT Connection fitting | ||
Measurement Range | 0°C to 140°C / 0-5bar abs. | ||
Accuracy | 0°C to 120°C ±25mb 120°C to 135°C ±10mb 135°C to 140°C ±25mb 0°C to 140°C, ±0.1°C |

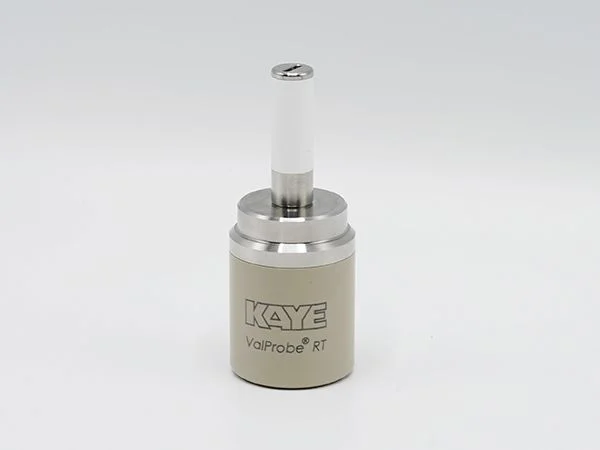

Sensor Type | Digital RH/T Sensor | ||
---|---|---|---|
Sensor Length | Up to 1 meter | ||
Tip Diameter | Sensor tip: 0.295”, 7mm Outer filter: 0.472”, 12mm |
||
Measurement Range | Temp: 0°C to 70°C Humidity: 15% to 95% |
||
Accuracy | 0°C to 70°C, ±0.15°C 15% to 95% RH, 2% |

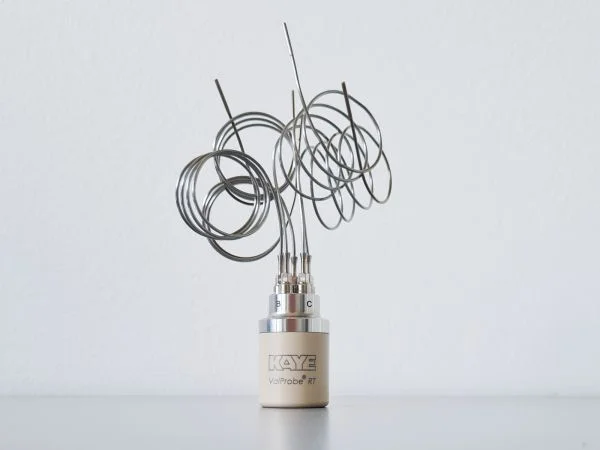

Sensor Type | 5 channel Sensor | ||
---|---|---|---|
Sensor Length | 61 cm (24”) | ||
Sensor Diameter | 1.6 mm (0.063”) | ||
Probe tip Diameter | 2.0 mm (0.078”) | ||
Measurement Range | 0 °C to 400°C | ||
Accuracy | 0 °C to 140°C, ±0.1°C 140°C to 400°C ±0.25°C |
