Kaye Validator AVS - Advanced Thermal Validation - Temperature Validation System

Features:

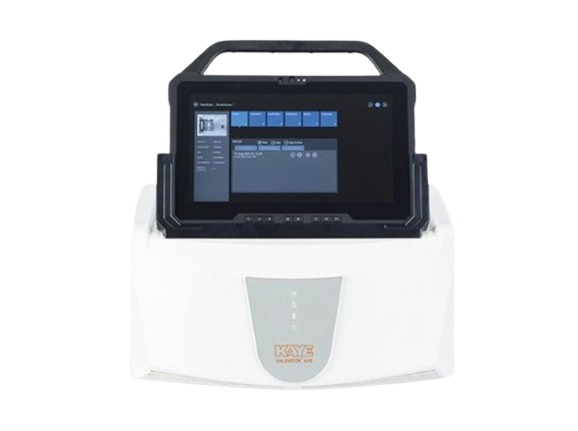

Validator AVS Wired Temperature Validation System

  1. Enhanced data handling and redundancy (4-levels)
  2. Expanded input capacity, types, and range
  3. Improved scan time 2/sec for 48 inputs (EN554/ISO17665)
  4. Stand-alone operation with Console docking station

Validator AVS Console

  1. Hardened, rugged Console pre-loaded with all Kaye software
  2. Easy-to-operate / state-of-the art intuitive user interface
  3. Ethernet/ WiFi/ Docking Station connections
  4. Asset centric concept for process equipment and Kaye hardware
  5. Console capable of running existing Kaye product software
  6. Improved Reporting Analysis Tool –backward compatible
  7. Simplified validation (GAMP-5)

Application:

The Temperature Validation System is built for many applications, including

  1. Steam Sterilizers (Autoclaves)
  2. Dry Heat Sterilizers
  3. Steam in Place (SIP)
  4. Water Cascade/Fall Sterilizers
  5. Incubators
  6. Stability Chambers
  7. Freezers
  8. Freeze Dryer/Lyophilisation
  9. Vessels

Technical specifications

Analog Input Up to 48
Thermocouples Type T, J, K,E,B,R,N,S: 0.1°C; T+ limited range 0.01°C resolution
Scanning Speed 48 channels per second
Internal Memory 4 gb for data collection
Input Impedance 10KΩ. Source greater than 10KΩ produces open circuit indication
Common Mode Rejection 160 db (8 inputs/sec) @ line frequency
145 db (12 inputs/sec) @ line frequency
140 db @ DC
Max. Common Mode Voltage 100V pk ch-to-ch350V pk ch-to ch to frame ground
Normal Mode Rejection 82 db @ 60 Hz (8 inputs/sec)69 db @ 60 Hz (12 inputs/sec)
Voltage Input 0 to 10 VDC
Resolution 1:72,000
Voltage Input Accuracy 30 days: ±(0.003% of reading + 2 counts + 4 microvolts)
1 year: ±(0.006% of reading + 2 counts + 4 microvolts)
Sensitivity 0.5 microvolts/count on most sensitive range
Voltage Temp. Coef. ±(0.1 microvolts + 0.001% reading)/°C
Compensator Temp. Coef. ±0.01°C per °C
Input Terminal Temperature Non-uniformity ±0.1°C from calibrated terminal
Input Ranges -6 to 30mV, -12 to 60mV, -60 to 300mV, -2 to 10V
Environmental Temperature: 0 to 50°C (32 to 122°F)
Relative humidity: 95% non-condensing
Power 90 to 250 VAC, 50/60 Hz
Fuse Rating 4A Slow Blow
Size 190H X 411W X 381 mm D (457 mm with SIM)
7.5 in H x 16.2 in W x 15 in D (18 in with SIM)
Weight 10.60 kg (23.4 lbs)
Battery Lithium ion with minimum 3 hours of battery backup
